SPEEDX 368A Professional Network LAN Cable Tester and Line Checker with Dual RJ45 Ports | Diagnostic Tool for Ethernet UTP/STP, Short/Open Circuits, and Crossover/Straight Cables

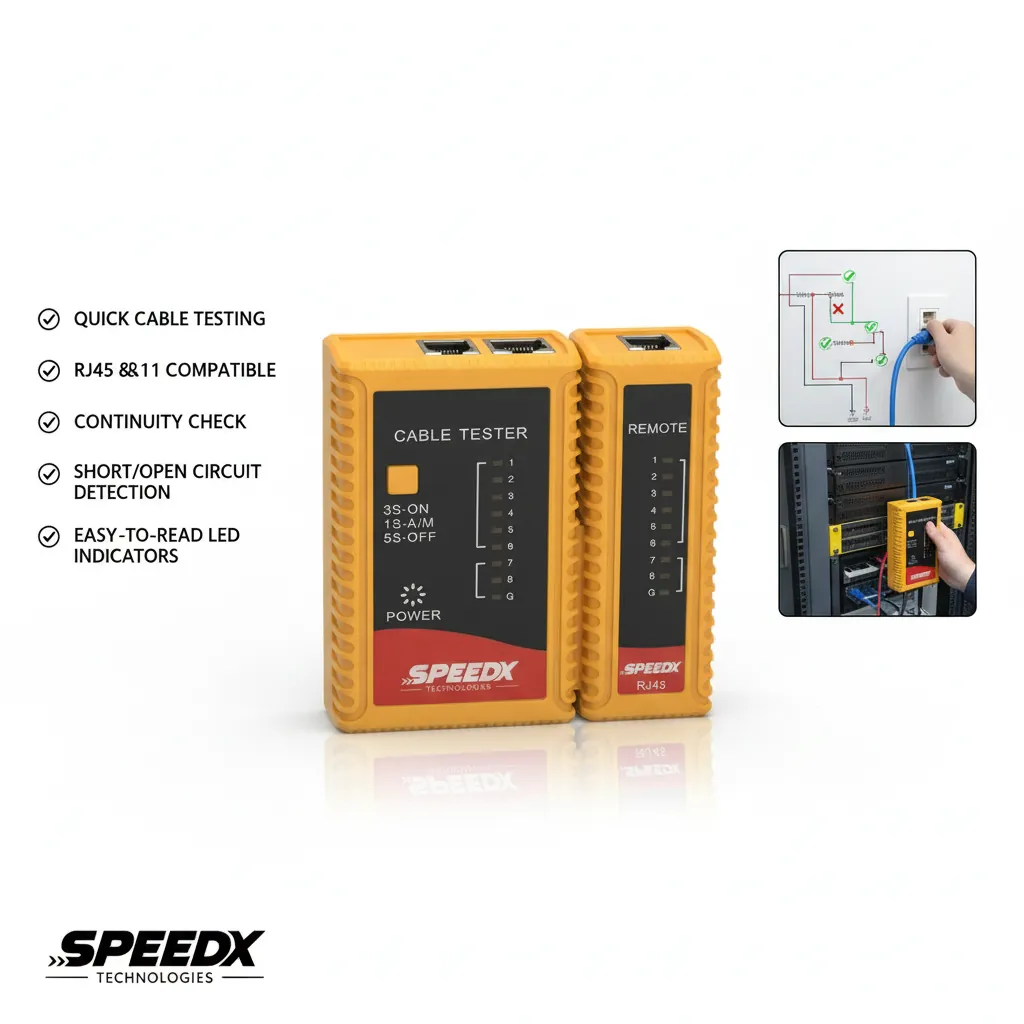

The SPEEDX 368A Network Cable Tester is a fast, reliable, and essential diagnostic tool for IT professionals, network installers, and DIY tech users. Designed to quickly verify the continuity and wiring configuration of RJ45 Ethernet (LAN) cables, this checker instantly identifies common cabling faults, saving you time and effort on installation and troubleshooting. The tester consists of two units: the Main Unit (Tester) and the Remote Unit, which separate easily for testing long runs of installed cables.

Key Features:

• Quick & Accurate Diagnostics: Use the clear LED indicators (1 through 8, plus G for Ground) on both the main and remote units to rapidly confirm the pin-to-pin wiring status of your network cables.
• Simple Operation: Features a 3-position slide switch for control:
• 3S-ON: For standard, continuous testing.
• 1S-A/M: For slower, step-by-step manual testing (great for visual inspection).
• 5S-OFF: Power off.

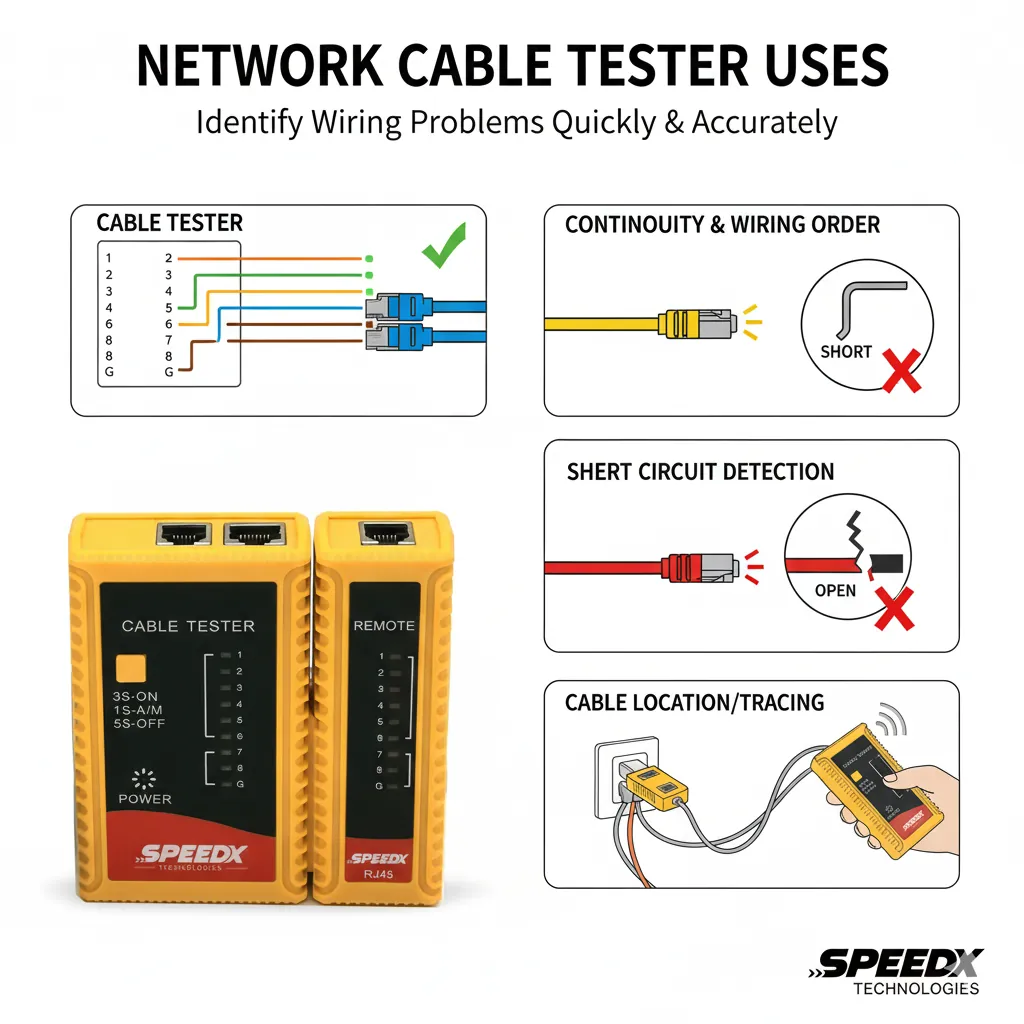

• Identify Wiring Errors: The tester immediately alerts you to critical faults, including:
• Open Circuit: A break in one or more wires (LED off).
• Short Connection: Two or more wires touching.
• Miswire (Crossed): Incorrect wire pair assignments (LEDs flash out of sequence).
• Straight/Crossover Detection: Quickly verify the cable type by observing the LED sequence.
• Split-Unit Design: The Remote unit is removable, allowing you to test network cables installed across rooms or buildings from one central location.

Versatility and Durability

The robust, high-visibility yellow casing ensures durability and makes the tool easy to find in a crowded toolbox. It's perfectly suited for professional use in server rooms, offices, and home network setups.

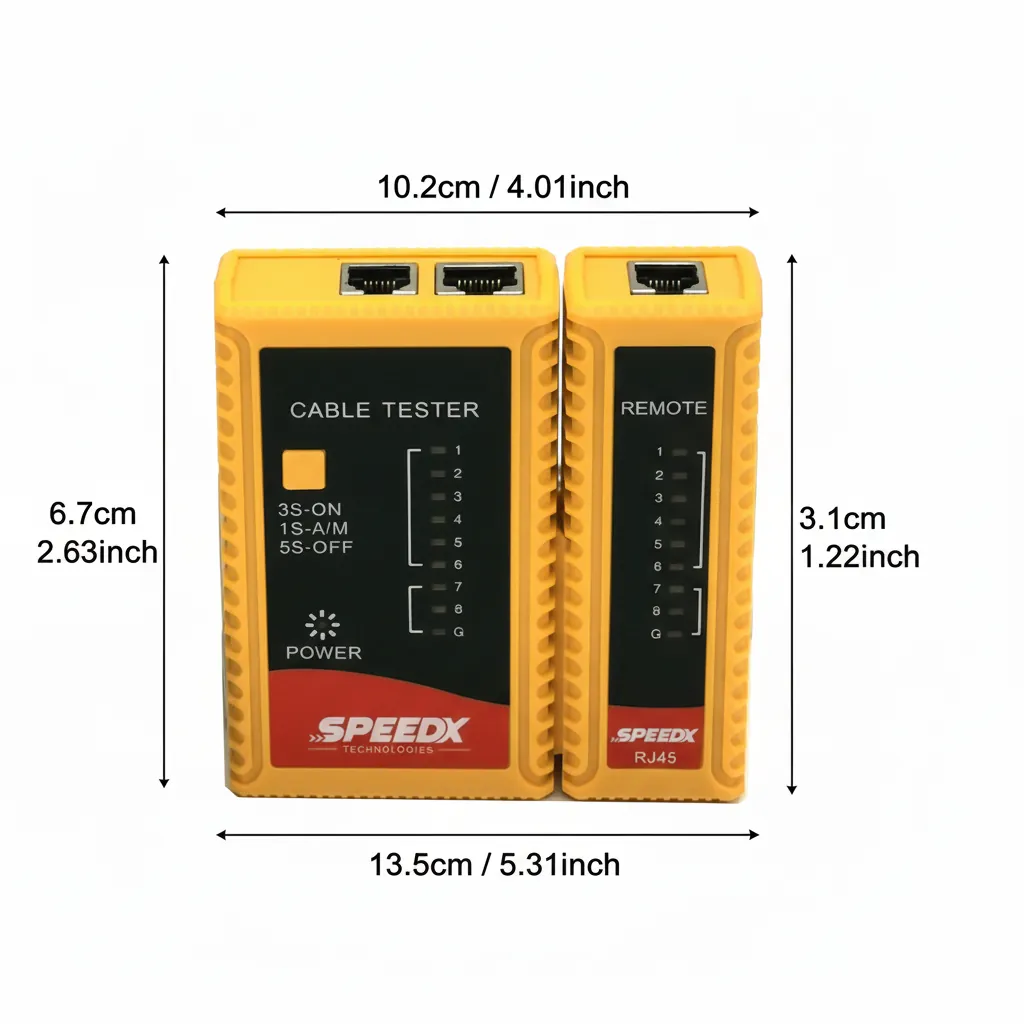

Product Specifications

Main Unit (Tester)

• Dimensions: Approx. $61 \times 103 \times 26$ mm
• Weight: Approx. 59g
• Ports: Dual RJ45 Sockets
• Power Supply: 006P 9V Dry Battery (Required, Sold Separately)

Remote Unit

• Dimensions: Approx. $32 \times 103 \times 26$ mm
• Weight: Approx. 36g
• Ports: Single RJ45 Socket
• Power Supply: Powered by Main Unit

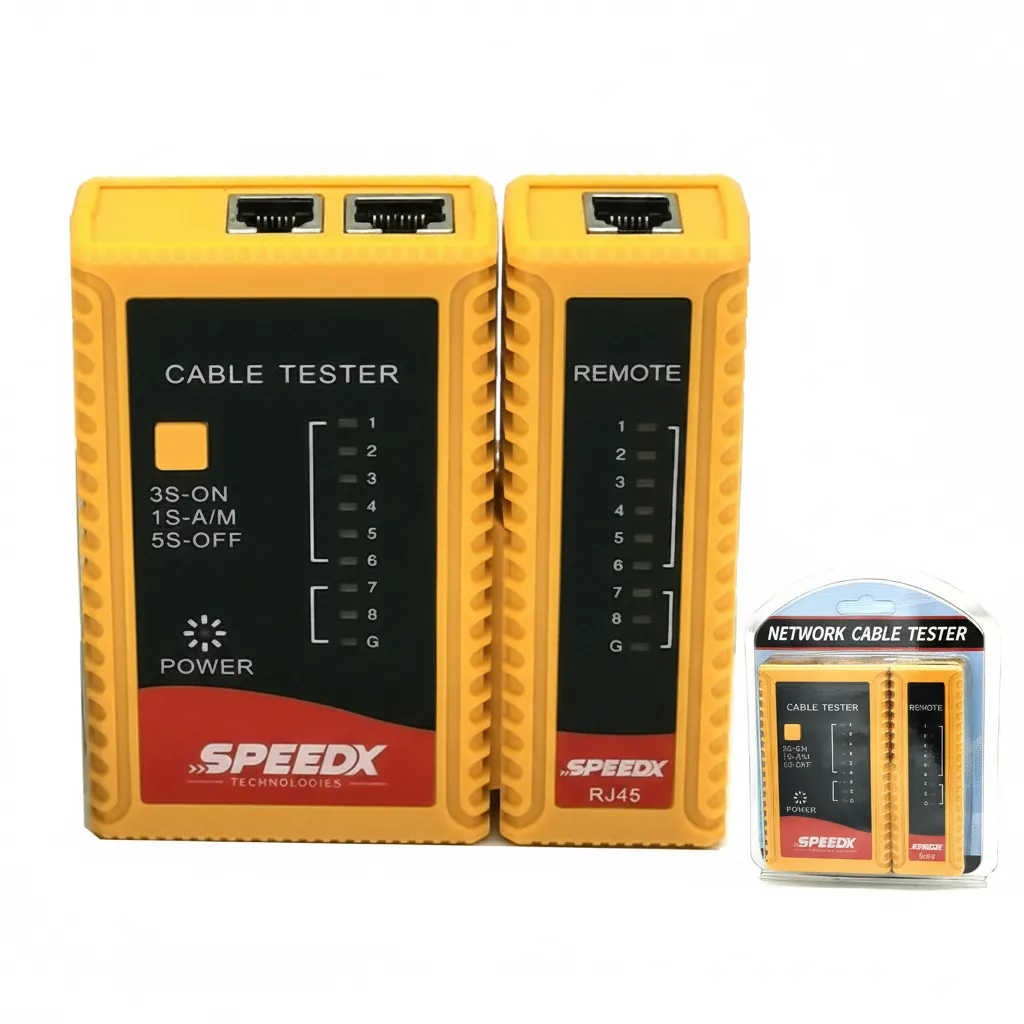

Included in the Package

• ✔ SPEEDX 368A Main Cable Tester Unit
• ✔ SPEEDX 368A Remote Unit
• ✔ Instruction Manual
