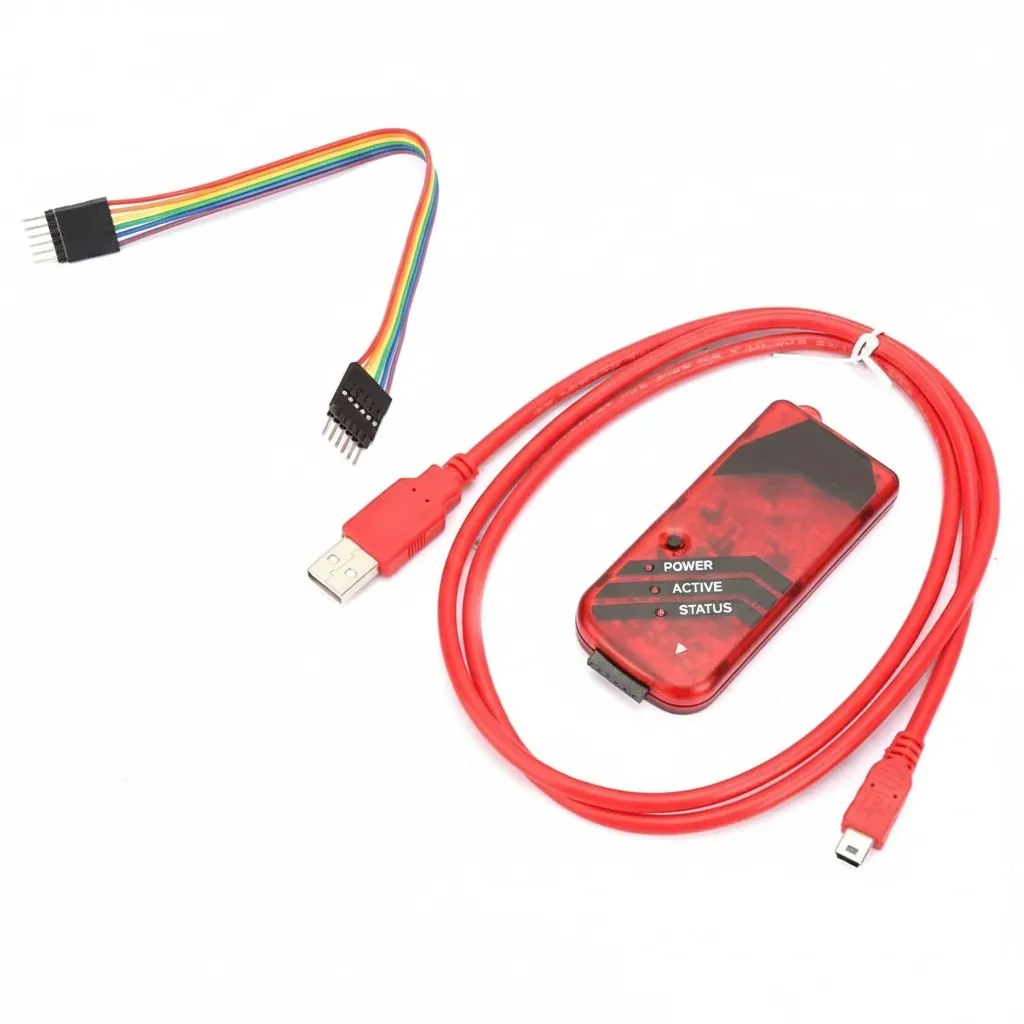

PICKIT 3.5 PIC Microcontroller Programmer/Debugger | MPLAB X Compatible | Offline Upgrade Kit

Elevate your embedded development with the PICKIT 3.5 PIC KIT3.5 Programmer/Debugger. This low-cost, high-performance tool is an upgraded version of the original PICkit 3, providing a highly reliable platform for programming and debugging a wide range of Microchip PIC and dsPIC Flash microcontrollers.The PICKIT 3.5 utilizes the in-circuit debugging logic built into each flash-memory chip, allowing for a simplified, low-hardware-overhead solution.Key advantages of this 3.5 upgrade include non-stop offline programming for smoother downloads, complete compatibility with all versions of MPLAB and MPLAB X, and enhanced stability due to increased external power supply current and more perfect interface protection. Each unit also has a unique serial number, enabling the operation of multiple units under MPLAB X.

Connected to your PC via a Full-speed USB (12 Mbit/s) interface, the programmer offers real-time execution and debugging capabilities.It features built-in over-voltage and short-circuit monitoring for safety, diagnostic LEDs (Power, Busy, Error) for status, and support for the Programmer-to-Go function, allowing programming of up to 512K byte flash memory without a host PC. This makes the PICKIT 3.5 an essential and versatile tool for developers, hobbyists, and production flashing.

• Program and Debug PIC/dsPIC Microcontrollers.
• Code dumping in the production process.
• Flashing or Firmware updates.

Key Features:

• Upgraded Stability: Non-stop offline programming and self-healing firmware for enhanced reliability.
• MPLAB/MPLAB X Compatibility: Fully compliant and conquer all versions of Microchip's IDEs.
• High-Speed Interface: USB (Full speed 12 Mbit/s) host PC interface for fast transfers.
• Advanced Protection: Built-in over-voltage/short circuit monitor and enhanced interface protection.
• Programmer-to-Go: Programs up to 512K byte flash memory without a PC.
• Real-Time Debugging: Supports breakpoints, memory read/write, and peripherals freeze.

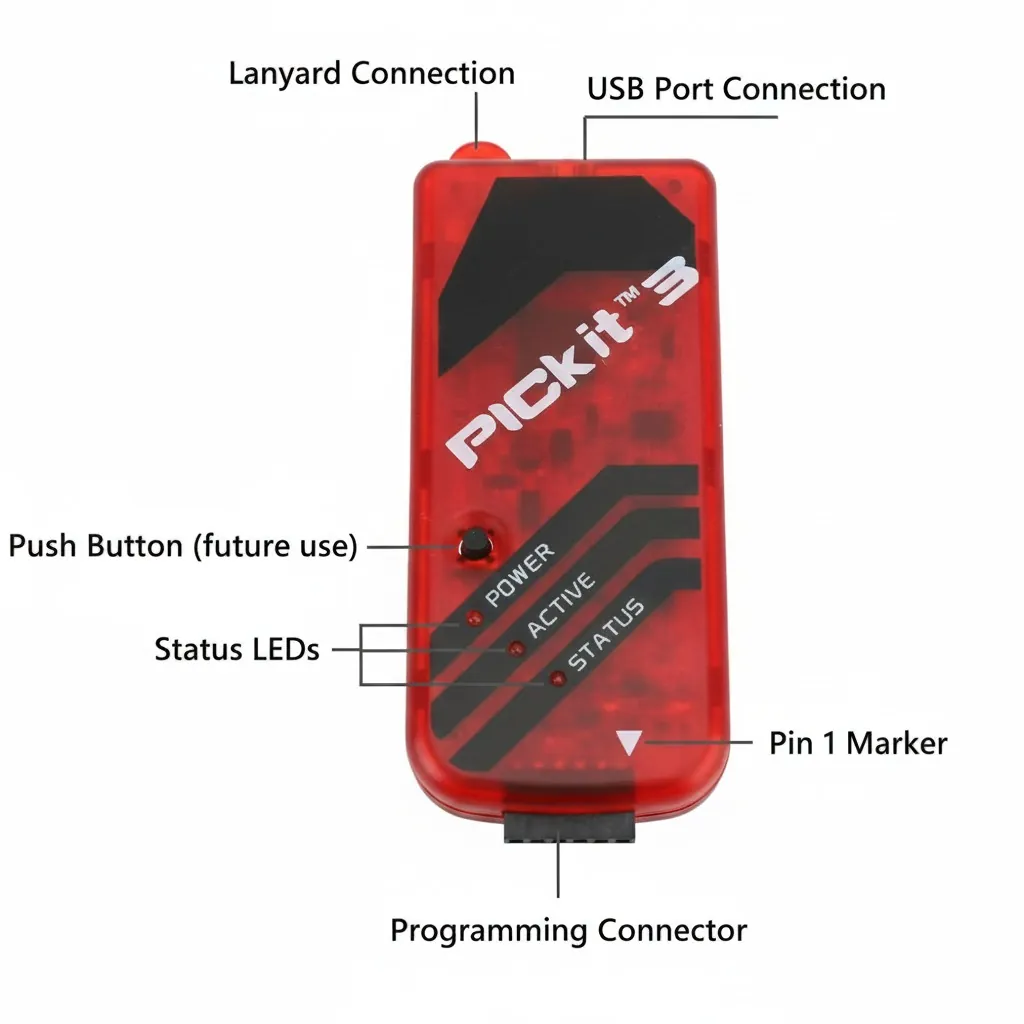

• Diagnostic LEDs: Dedicated LEDs for Power, Busy, and Error status.
