Fully Assembled DSO138 Digital Oscilloscope Kit |STM32 ARM Cortex-M3 Bandwidth Sampling Portable Diagnostic Tool

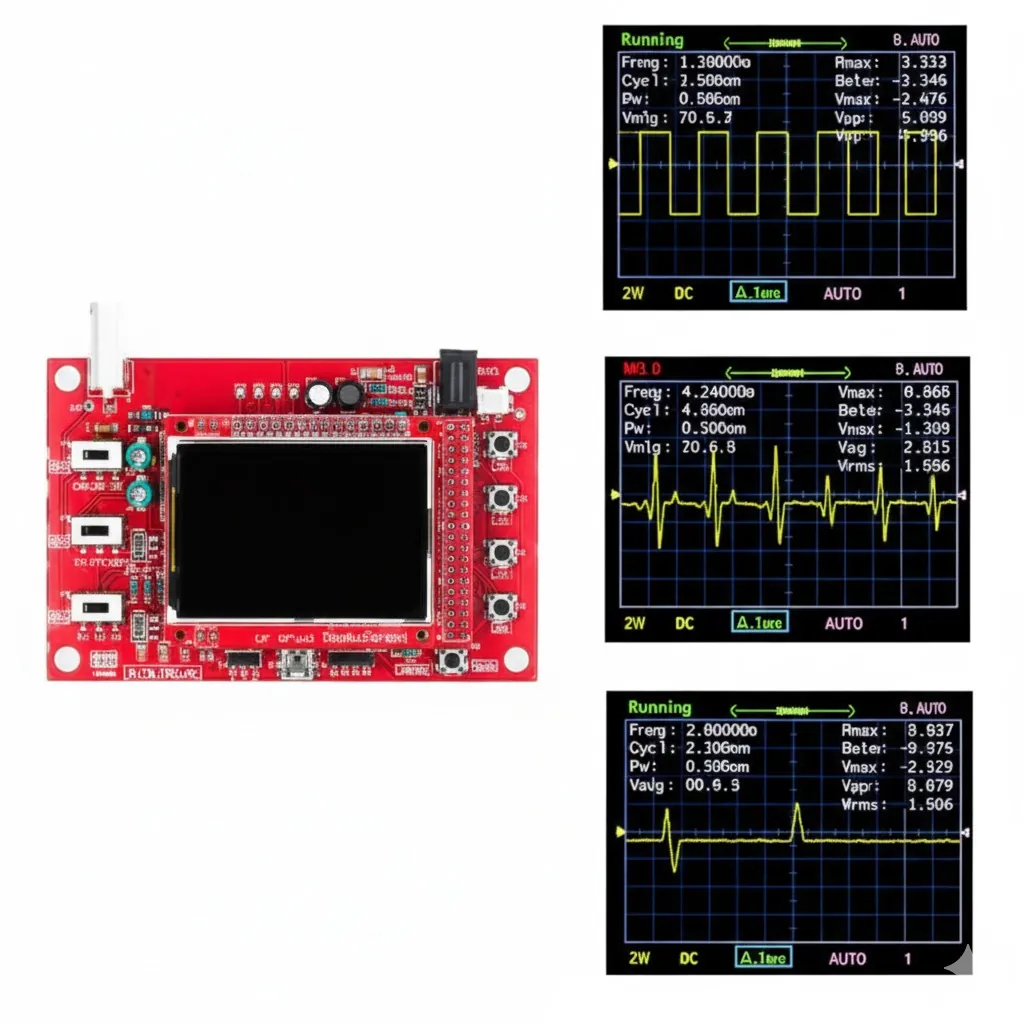

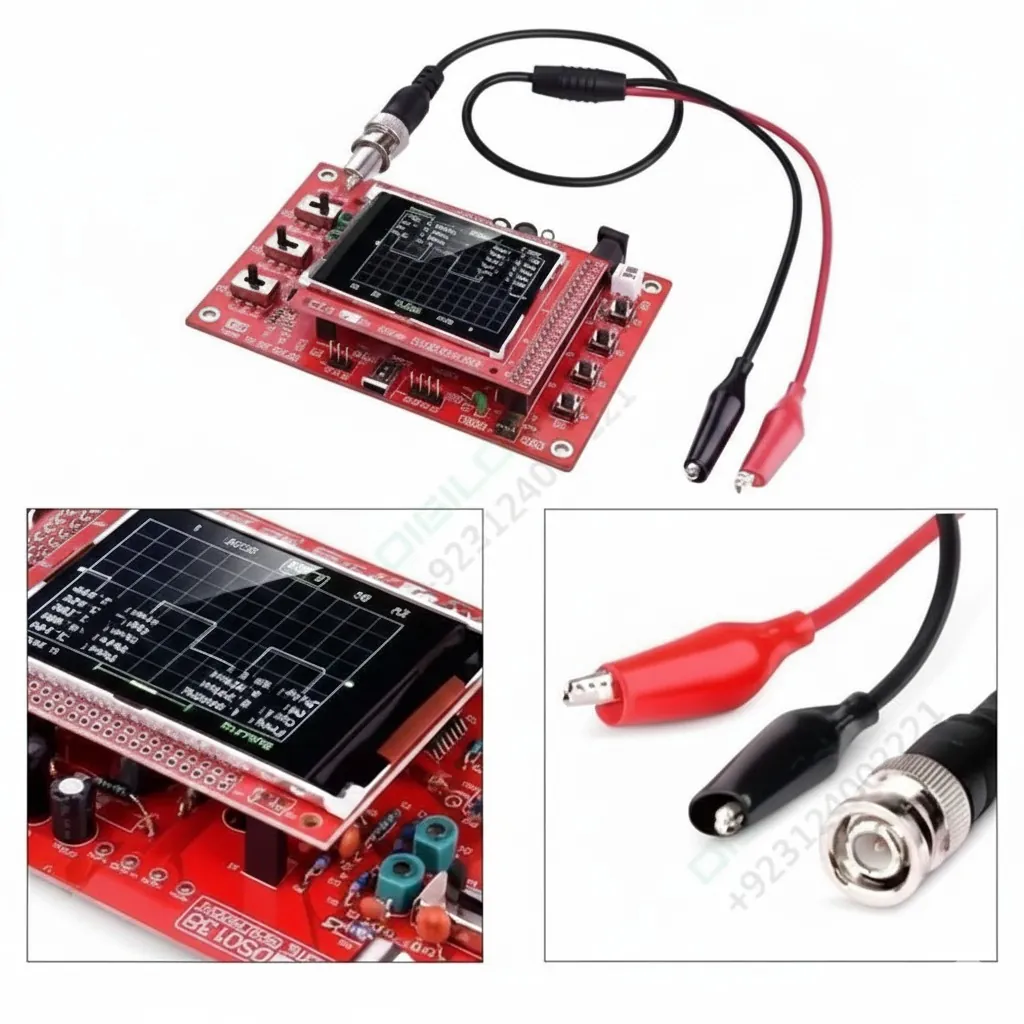

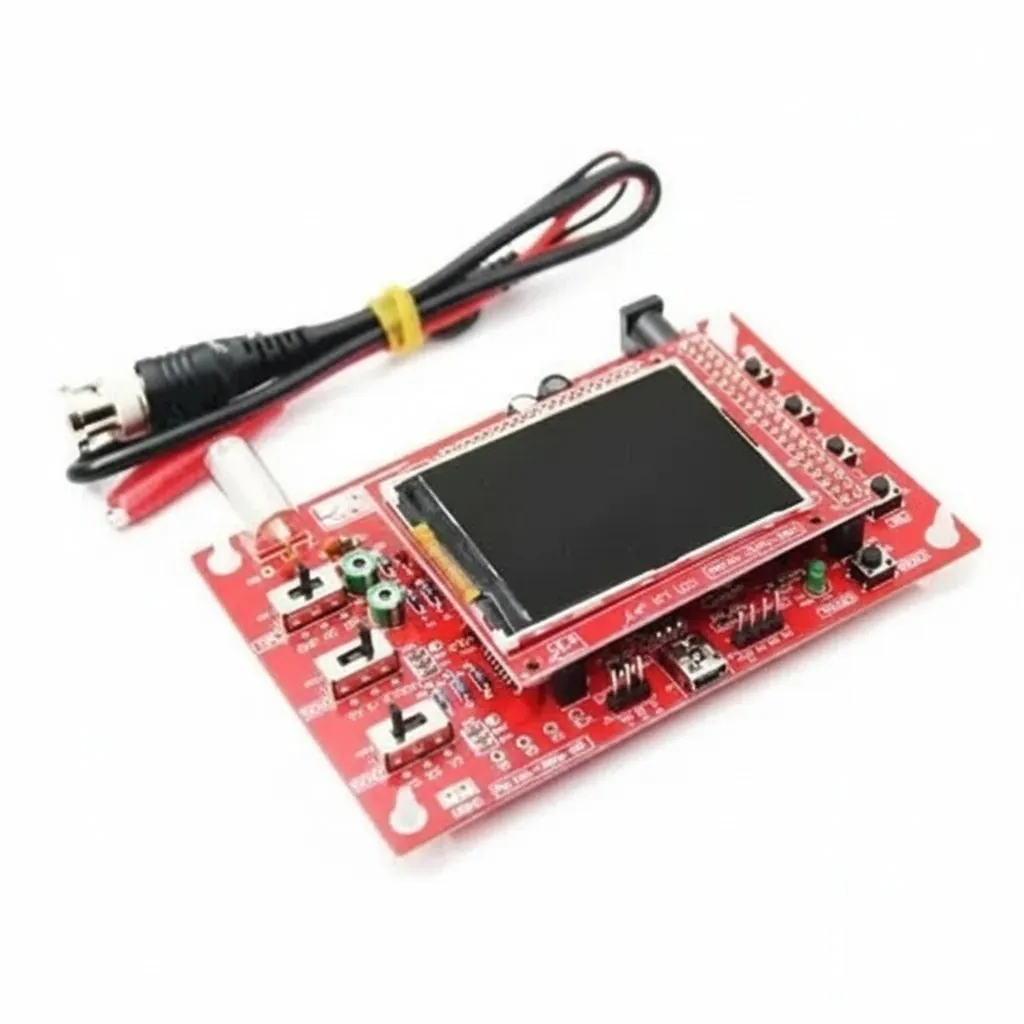

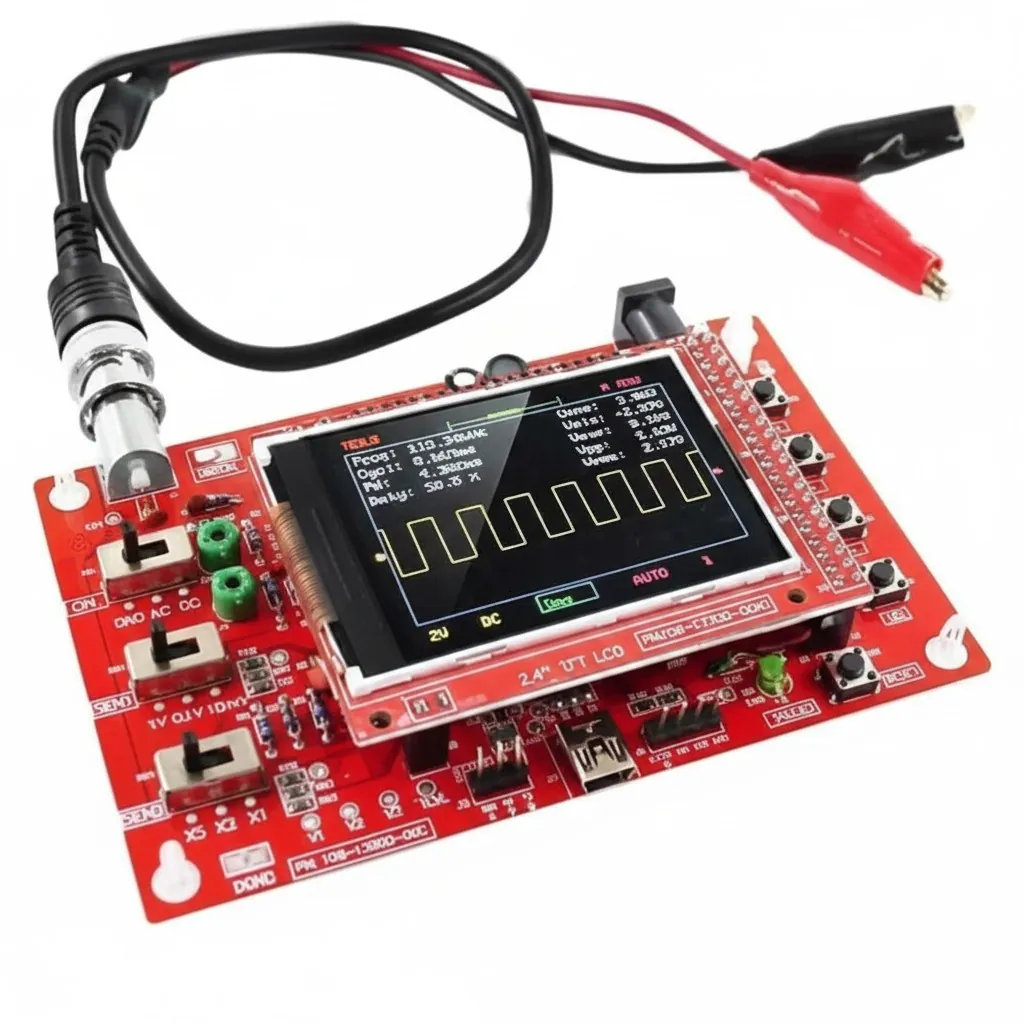

Acquire your first reliable measurement tool with the Fully Assembled DSO138 Digital Oscilloscope. This budget-friendly, portable oscilloscope is built around the powerful STM32F103C8 ARM Cortex-M3 processor, offering significant performance for its size. The device features a vibrant TFT color screen for clear waveform visualization and can capture signals within an Analog Bandwidth of at a Maximum Real-time Sampling Rate of {Msps}.The DSO138 is not only easy to operate but also highly versatile. It supports Automatic, Regular, and One-shot trigger modes to effortlessly capture both steady and transient waveforms. Critical waveform parameters are displayed digitally, including Frequency, Period, Pulse Width, Duty Ratio, MAX./MIN./AVG./Peak-Peak, and Virtual values. Its compact form factor makes it an ideal portable solution when paired with a boost converter (sold separately). Furthermore, the design allows for secondary development, enabling users to repurpose the board into devices like a millivoltmeter or data logger. It comes fully assembled with the necessary probe for immediate use.

Key Features:

• Processor & Display: Uses ARM Cortex-M3 processor (STM32F103C8) and a Color TFT screen.
• Performance: Analog Bandwidth and Maximum Real-time Sampling Rate.
• Measurement Modes: Includes Automatic, Regular, and One-shot trigger modes.
• Digital Readout: Displays key parameters: Frequency, Period, Pulse Width, Duty Ratio, P-P, AVG, etc.
• Sensitivity: Vertical Sensitivity adjustable from.

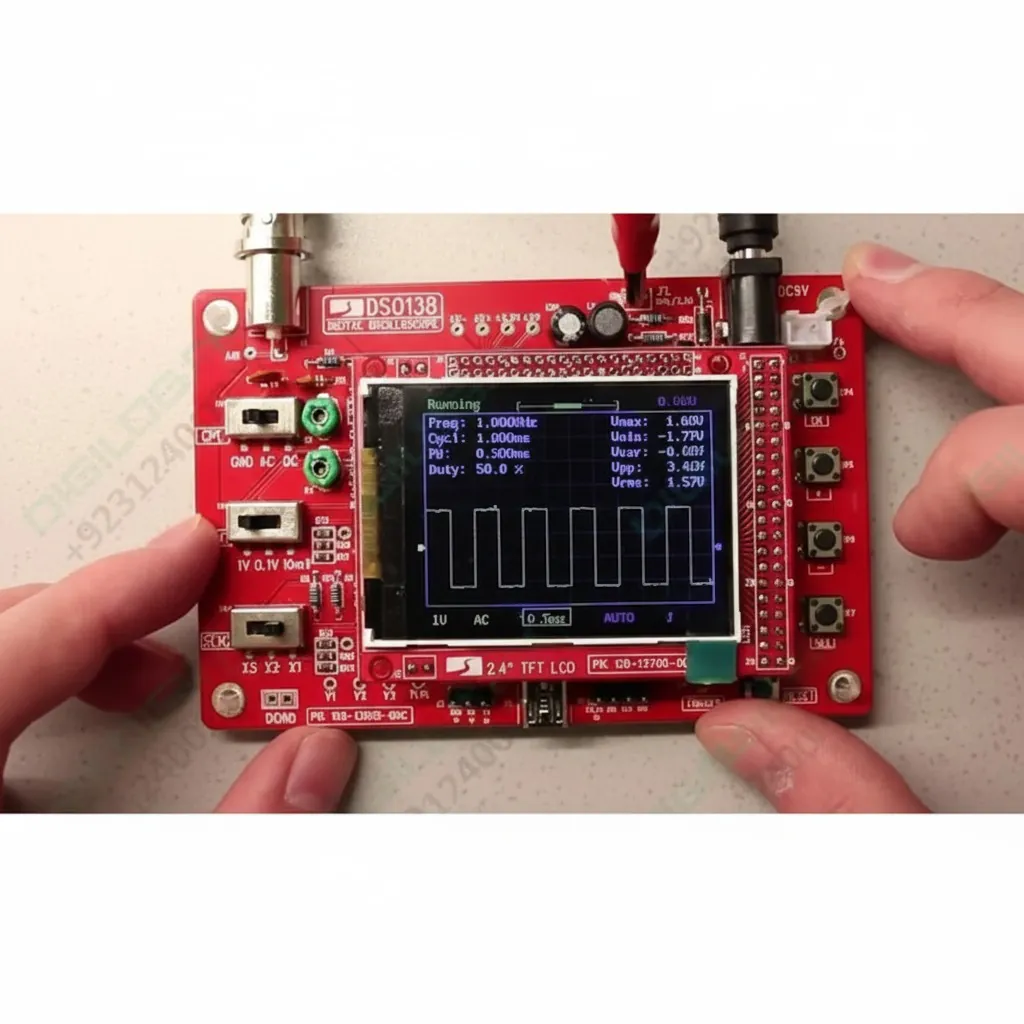

• Calibration Source: Built-in Square Wave Test Signal Source.
• Portability Ready: Can be connected to an external boost converter (not included) for portable use.
• Secondary Development: Open architecture allows for custom application changes (e.g., data logger).
