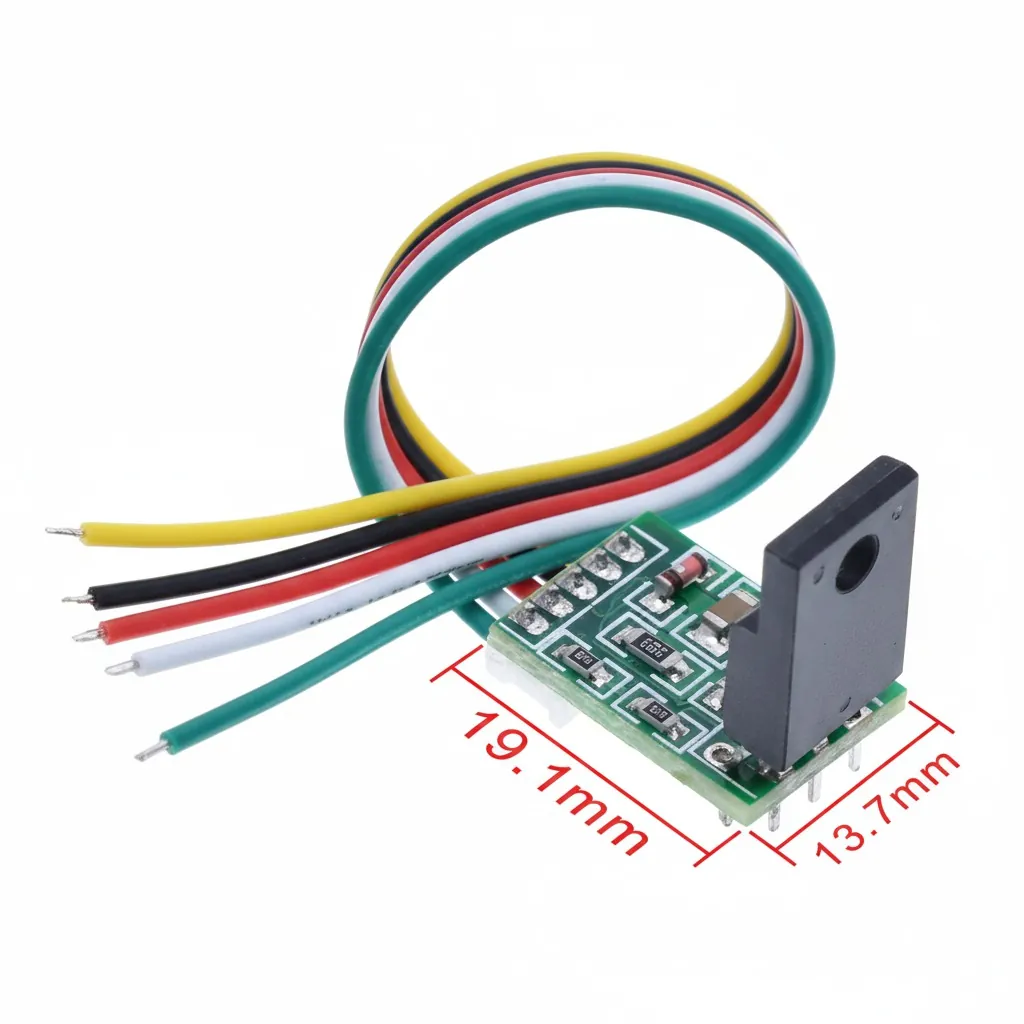

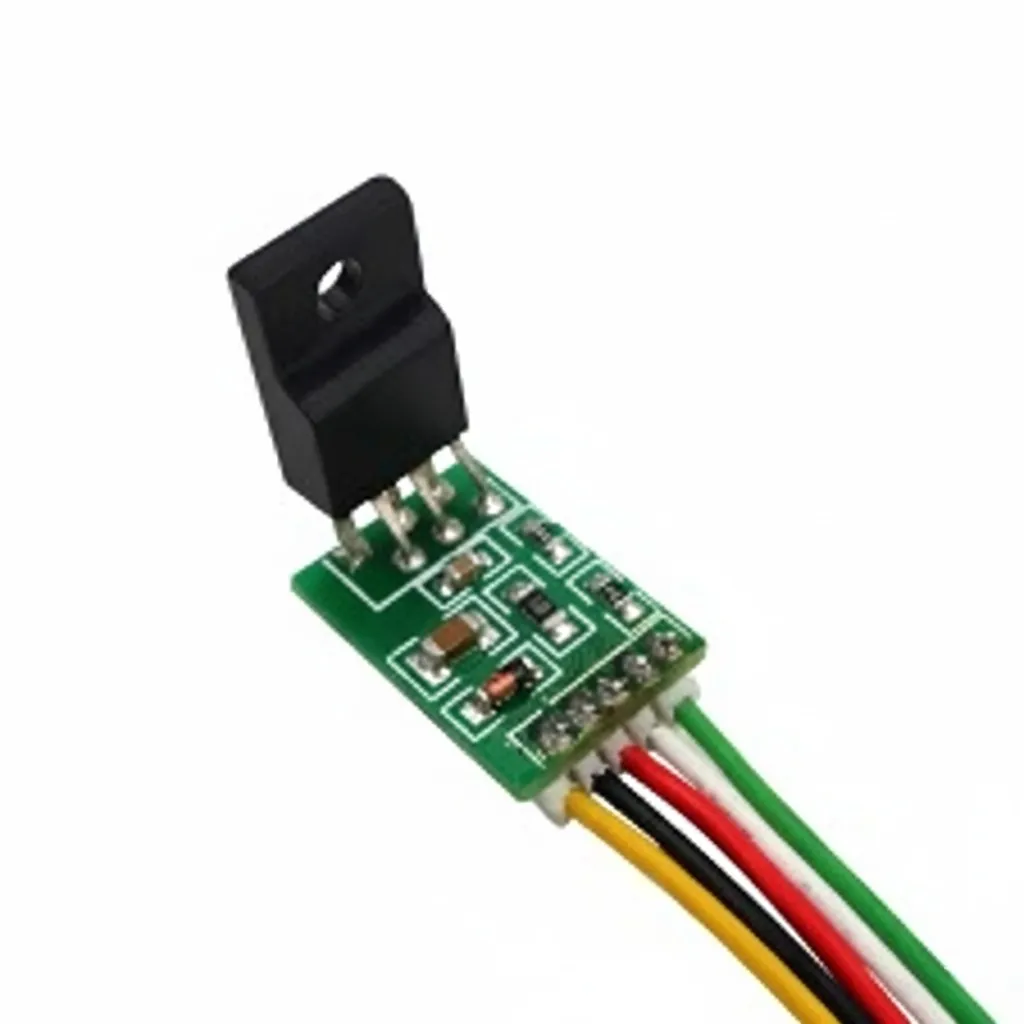

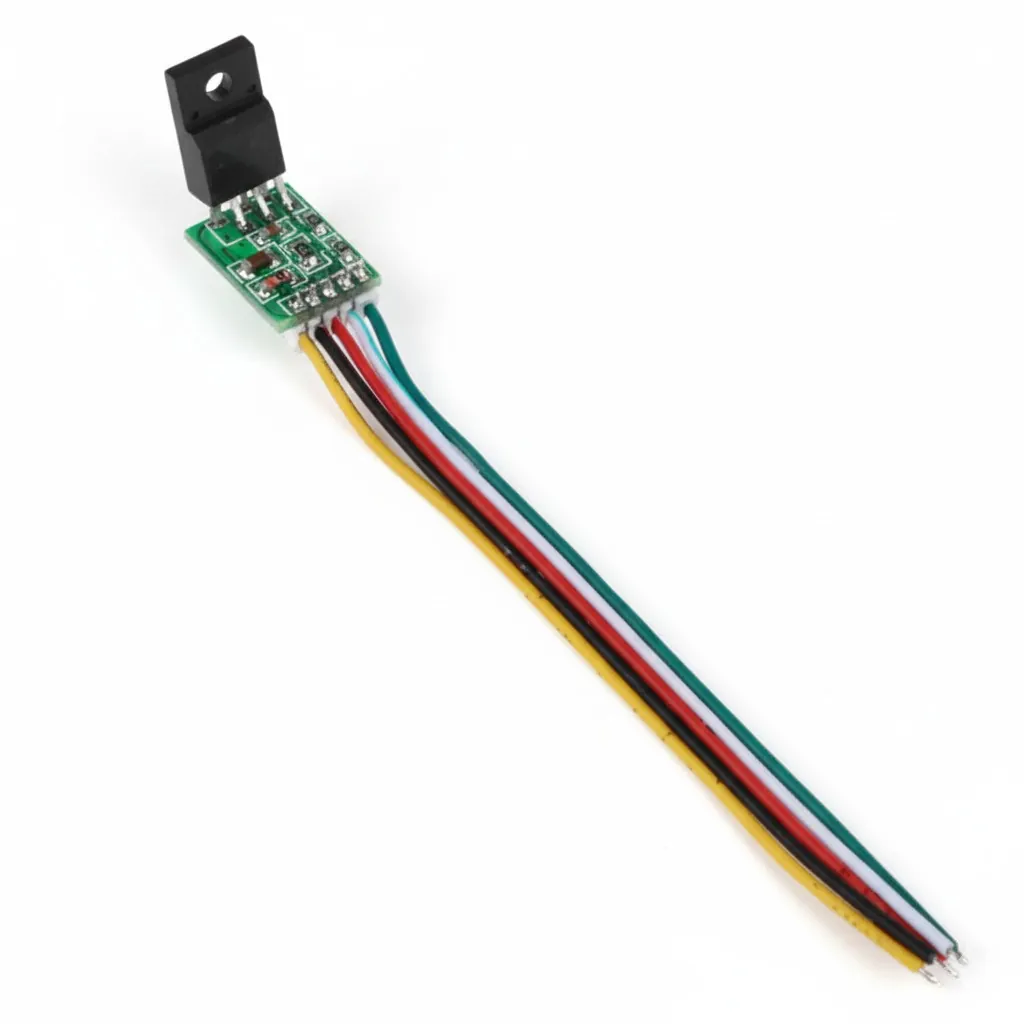

CA-888 Universal LCD/LED TV Power Supply Repair Module | 5-Wire Switch Tube SMPS Replacement for Monitor Maintenance

Quickly and affordably resolve common power board failures in LCD and LED monitors/TVs with the CA-888 Universal Power Supply Board Module. This switch tube module is engineered to replace damaged components like the main power control chip, high-power switch (MOSFET), and sampling resistors, whose specific models are often unavailable for repair.The CA-888 simplifies the repair process dramatically, featuring simple wiring and quick installation that improves the maintenance success rate and saves time. It operates by drawing continuous power (VCC) between and is designed to handle the high voltage associated with the primary side filter capacitor. This module is the go-to solution for electronics technicians and DIYers facing power supply issues, offering an Over-Voltage, Over-Current, and Short-Circuit Protection alternative to costly full board replacements.

Key Features:

• Universal Compatibility: Designed to solve power supply issues in LCD/LED TVs and Monitors.
• Easy Repair: Offers simple wiring and quick installation, bypassing damaged power chips and MOS switches.
• Power Input: Operates on the primary side (hot ground) with DC input (via Start Pin).
• VCC Range: Module power supply (VCC) accepts DC.
• Protection: Includes protection against Overload, Over Voltage, and Short Circuit (commonly associated with similar modules).

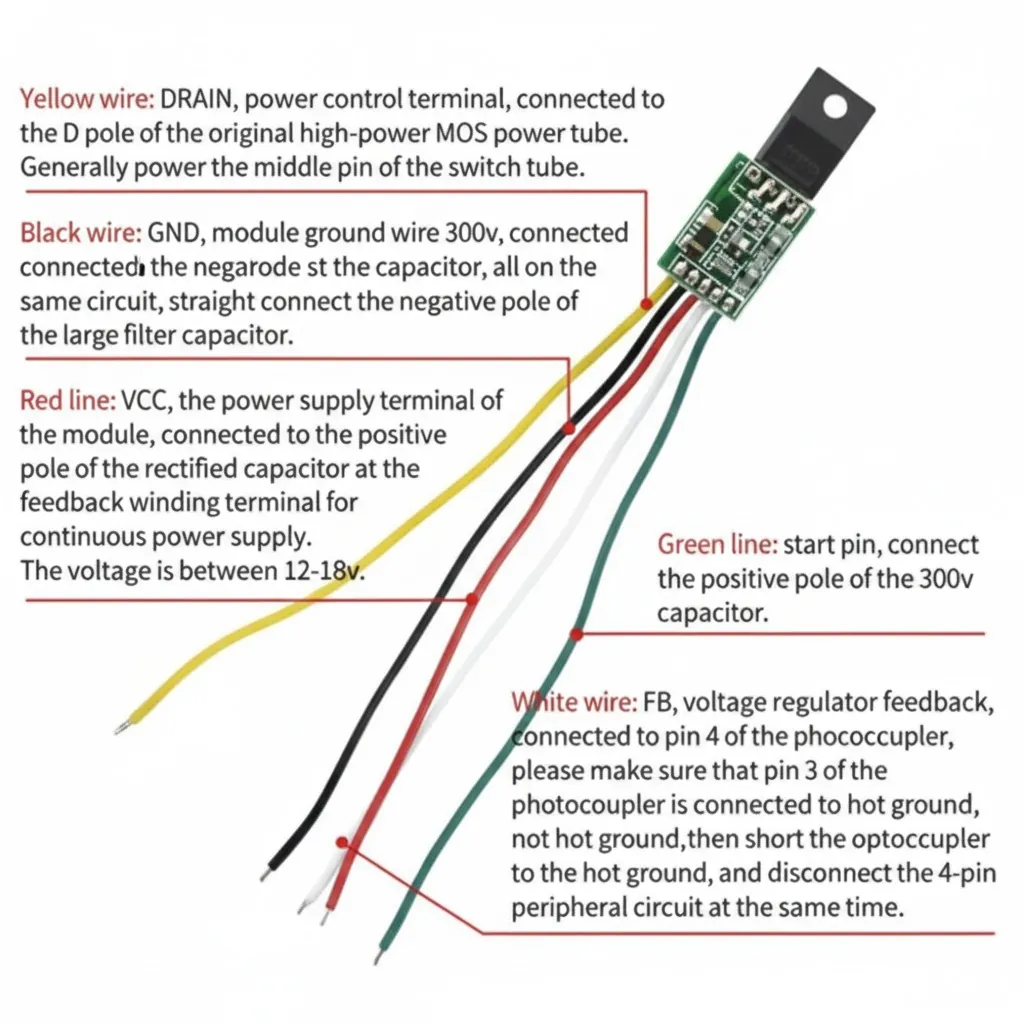

• Pin Definitions: Clear $5\text{-pin}$ definition (Drain, GND, VCC, FB, Start) for targeted installation.
• Cost-Effective: A general-purpose solution that eliminates the need to source specific, hard-to-find repair components.
